Tunnel UV Curing Oven

Scope of application
This machine is suitable for the coating of UV photosensitive coatings, inks, adhesives, adhesives,

injection molding or printing surfaces of various materials for instant curing and drying.
1. Printing: widely used in screen printing, lithography, letterpress printing, self-adhesive trademarks,

metal nameplates, PC, PVC, ABS, PS, acrylic, tetoron, glass, ceramics, electronic parts,

single-sided circuit boards Wait.

2. Coating aspect: wood surface bright coating, paper surface polishing, plastic floor tiles, PU skin

coating, optical fiber line surface coating, etc.
3. Follow-up aspects: bonding of CHIP parts of circuit boards, bonding of various electronic parts,

glass, liquid crystal chips, and terminal sealing glue.

4. Note type: decorative color dishes, decorative accessories (buttons, brooches, hair clips,

belt buckles, etc.).
The main technical parameters
Lamp power: 3kw*2
Network bandwidth: 400mm
Conveyor belt material: high temperature resistant Teflon
Transmission speed: 2-12m/min
Dimensions: 2000*560*1560 (mm)

Performance characteristics
1. Instant drying, high production efficiency.
2. After drying, the surface of the printed part can achieve high hardness, high gloss, abrasion

resistance and solvent resistance.
3. The transmission adopts roller transmission, frequency conversion stepless speed regulation.

4. The conveyor belt is anti-offset to ensure smooth conveying.

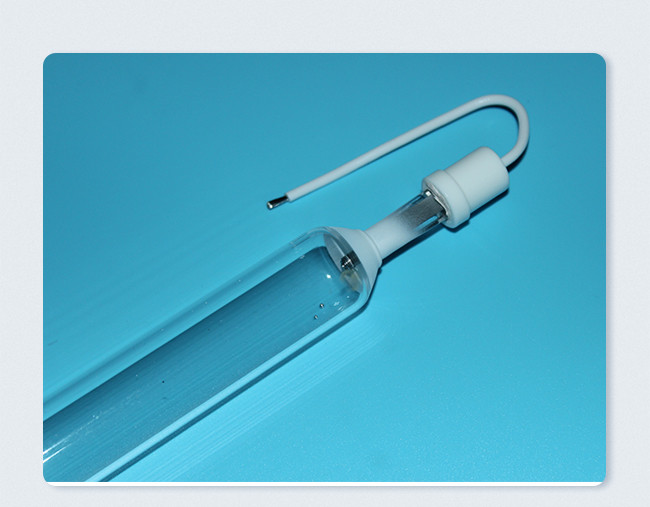

5. Use high-quality and high-efficiency lamp tubes, the lamp room is forced to exhaust heat, extend

the life of the lamp tube, and protect dry objects from thermal deformation.
6. The surface of the box is fully sprayed with plastic, which is beautiful and corrosion-resistant.
