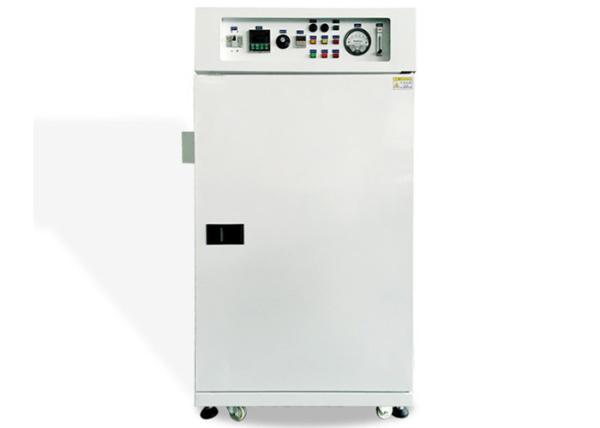

    400degree 1200L Hot Air Circulation Industrial Batch Oven

    Ask Lasest Price
    Brand Name : YI JIANG
    Model Number : YJ20112
    Certification : ISO 9001, ISO 9000
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15work days
    Delivery Time : 15Word days
    • Product Details
    • Company Profile

    400degree 1200L Hot Air Circulation Industrial Batch Oven

    Programmable hot air circulation Industrial Batch Oven 400 Degrees Celsius


    Electric powder coating Oven Features

    The exterior is made of SECC steel plate and refined powder paint; the interior is made of SUS stainless steel
    New high temperature resistant long axis motor
    Turbofan
    Silicone pressing
    Over-temperature protection: automatic power-off system for overload
    Circulation mode: forced horizontal air circulation
    Heating method: PID+S.S.R
    Temperature range: room temperature +90~350℃, the implementation meets the standards and test methods.
    Programmable hot air circulation drying oven

    ●Controller: Original imported LCD liquid crystal display film button controller,
    ●Control method: temperature can be controlled by program alternately,
    ●Program group capacity: 300Pattern (group) /300Step (segment), the longest segment running time is 99 hours and 59 minutes,
    ●With power-off memory function, the unfinished test can be continued after power is restored
    Specification
    TransportationTrolley
    Circulation/ Air flowVertical ,Variable through holes on the walls
    Wall Panel150mm thick sandwich rock wool steel board, keeps the heat better and save energy.
    Floor Panel100mm thick sandwich rock wool board, optional
    Edge CoversThe edge covers are used for connecting the wall panels and makes the oven stronger and stable and also safe for workers.
    ThresholdsThe upper and bottom thresholds are for a better seal effect, the container lock will locks on the thresholds, keep heat better and save energy.
    Hot Air Circulating Fan1 set CF-1.5A 0.37kw high temperature resisting fan supply power for the air circulates in the oven and save energy.
    Air flow capacity: 860-1095 m³/h
    Air pressure: 815-762 Pa
    Air speed: 2900 r/min
    Air DuctThe hot air circulates between inside of the oven and the air duct, make sure the temperature is equilibriumed in the oven.
    Heating System6 sets 2kw stainless steel electric heating tubes can make sure the enough heat for curing and safe operations during working.
    Electrical Control SystemThe control box including the switches: Power on/off, Fan, Temperature controller, Timer, Emergency Stop, alarm, temperature, timer etc
    ColorUsually the color is blue, but can be customized


    Packaging & Shipping


    Small size electric oven will be delivered overall, after assembling the oven, will be packed with PE film and then load into the container.

    Big size electric oven will be delievered by oven parts.All the parts will be packed with PE film and labeled with numbers and names.
