| Ask Lasest Price | |
| Brand Name : | YI JIANG |
| Model Number : | YJUV500-13 |
| Price : | Negotiate |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10work days |
| Delivery Time : | 10work days |

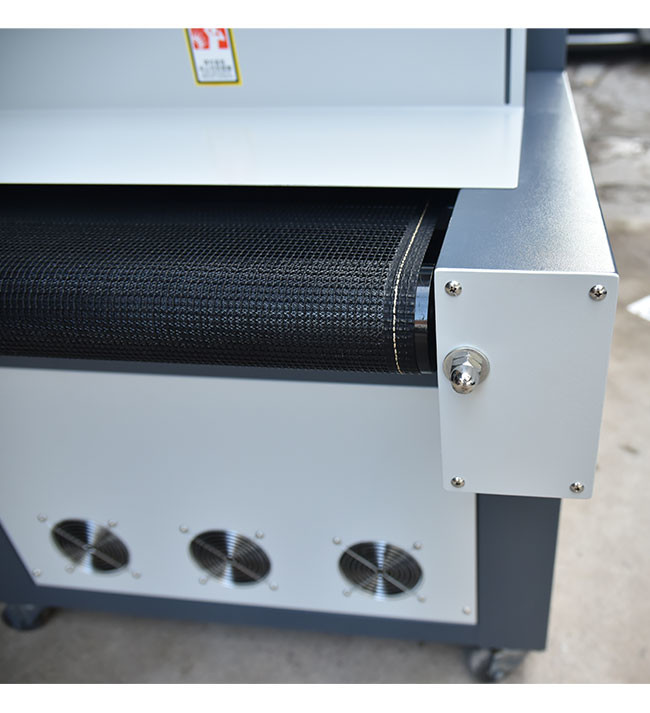

UV Roll Coater / UV Curing Machine
Application area:
UV Curing for flat products. It is fit to UV drying PVC ,paper
offset UV varnish ,UV polishing,UV glue,
soft PCB after printing UV ink , plastic UV printing. Electronic
product UV spray, packing products UV drying
Used for drying screen printing ink of UV ultraviolet (UV) light
curing. Can be used in UV light oil, grinding,
wrinkles, snowflake, foaming, crystal convex oil, marble,
refractive index, various UV color, etc.
Main performance
Our machine most strong point is that it has 2 suits of UV lamps
and 2 suits of UV control systems.
Every system can be used independence. It use Teflon belt to bear
high temperature.
Technical Parameters
| Brand | YI JIANG | Power | 19KW |
| Model | YJUV500-13 | Conveying width | 500mm |
| Conveying material | Teflon mesh belt | Transfer speed | 0~7m/min |
| Table height | 980mm | Quality assurance | 1 year |
| Overall machine size | 2500mm*880mm*1600mm | Uv lamp light | 50~120mm(adjustable) |
| Illuminate width | 620mm | Cooling system | Air cooling |
| Power configuration | 5.6kw copper-coil transformer+UV capacitance | Shell material | Sheet metal |
| Main peak wave value | 365nm | Number of lamp tube | 3pc |
| Reflector housing | Polished aluminum reflector housing with imported reflective aluminum sheets | Lamp power | 5.6kw380V |
| Lenth of feed end | 500mm | Length of discharge end | 500mm |
| Machine material | Anti - rust treatment after the surface paint treatment | Cabinet color | Pale yellow |
| Power supply | Three-phase 380V/50HZ | High inlet and outlet | 100mm |
| Drum | Ensure smooth product delivery | Furnace body length | 500mm |
| High inlet and outlet | Add nylon casters at the bottom*4 | Lamp quality assurance | 800H |
Note:Can be customized according to customer requirements
|
|
