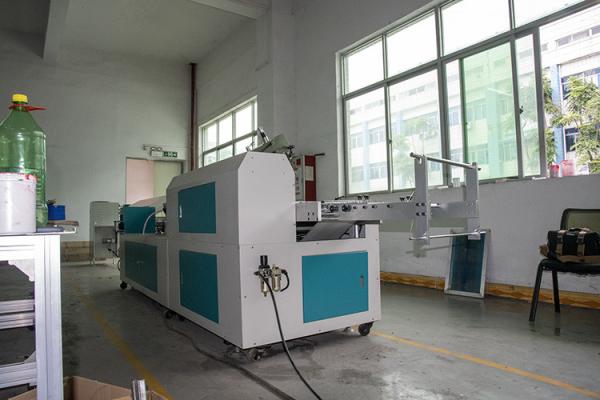

Precision Electric Large Flat Screen Printing Equipment

YJ-P12 with variable frequency motor control, fast reaction speed, accurate start stop

position. This is the large precision electric flat screen printing machine; using imported

pneumatic components, pneumatic and electric control; double column lifting structure,

stable and high precision, to make the printing pressure more elastic. Printing balance

stability, little vibration, high precision, accurate multi-color overprint.

Left and right running, using the lubricating sleeve, suitable for the SMT printing, PVC

film, plastic film, textile, keyboard, circuit board and printing other big products LOGO.

Safe and Aesthetics, simple operation, easy to fetch, can improve production efficiency.

Application

Printed PCB board, silicone, textiles, plastic buttons, PET, cardboard, nameplate,

trademark, IC board, membrane switch circuit, mobile phone lens, glass, liquid

crystal display panels and signs, and etc flat materi

Standard Features

* Touch screen man-machine interface with PLC, durable, simple maintenance and powerful.

* Touch screen man-machine dialogue operation mode, convenient and quick

(Printing design a variety of circulation, the user can choose freely according to the printing process).

* Up and down, left and right running using the sliding guide rail type structure,

high accuracy, smooth operation.

* Scraper constant pressure device to ensure the stability of the pressure in the

printing process.

* Scraper / reclaiming tool is adjustable in different angle.

* High precision fine-tuning the workbench with self-locking device, adjusting precision

can reach 0.01 MM.

* Can adjust the net frame’s front and back, left and right, and level location.

* Print head pneumatic lifting function, convenient take put or wash the stencil.

* The variable-frequency control make the printing more smooth.

* Fine grinding high strength stainless steel hardness inspiratory workbench, high flatness,

guarantee the multicolor accurater.

* Install emergency stop button.
