DONGGUANG YIJIANG Photoelectricity Technology Co., Ltd
6 Years
| Ask Lasest Price | |
| Brand Name : | YI JIANG |
| Model Number : | UYT987 |
| Price : | Negotiate |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10work days |
| Delivery Time : | 10work days |

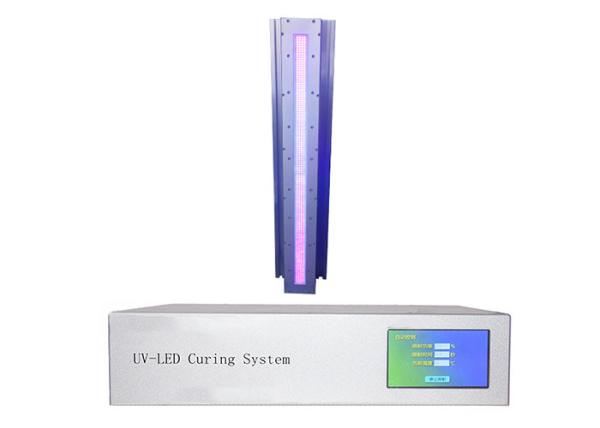

Technical parameter:
| Input voltage | AC220-240 - v |
| Cooling way | forced water cooling |
| Water-cooled machine size | 470 mm * 260 mm * 260 mm |
| Belt width | 800mm teflon |
| Power | 1600w |
| Size | 2*980*1.1m |
| Wire and pipe size | 5 m |
| UV LED band | 365 nm, 395 nm |
| UV LED light intensity | 365 nm (1200 mw/cm2-1600 mw/cm2) 395 nm (2800 mw/cm2-3600 mw/cm2) |
| Effective radiation area | 75 mm * 25 mm |
| Warranty | 2 years warranty |
| Import of vertical structure light source: the Taiwan chip, quartz lens encapsulation, 120-200 - w, small size, high power, fast curing | |
Tip: We can manufacture according to customer's requirement. We can do any curing width,
pls advise the max curing width you need !
Control mode:
A key switch: to control the light output on/off.
Adjustable power set: UV energy using the infinite set arbitrary
between 0-100%.
|
|
