Low Temperature UV Curing Machine

Technical Parameters:
UV lamp power: 8kw*7 (halogen lamp)
UV lamp total length: 800mm arc length: 700mm
Main peak of UV band: 365nm, 385nm
UV lamp timer configuration

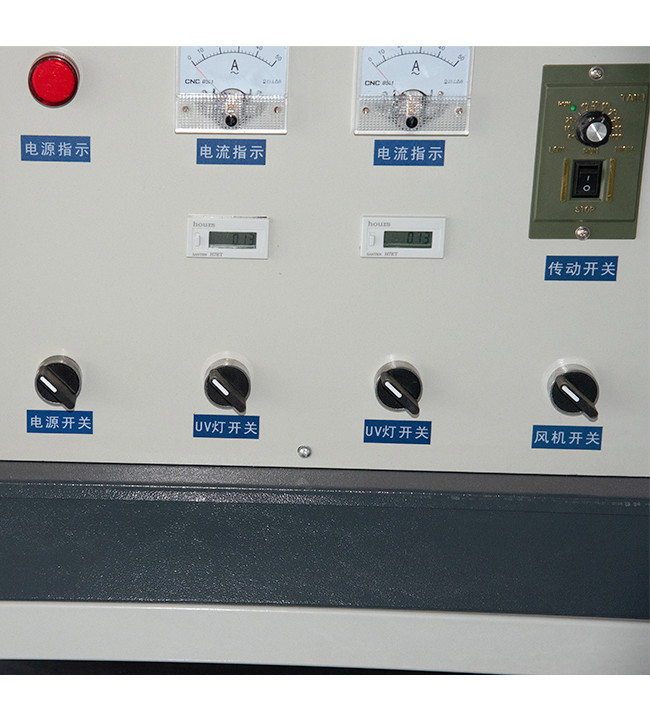

Using man-machine interface control
Strong and weak light intensity adjustment: 20%～100% (infinite dimming)
Aluminum plate light box with optical reflector and optical filter lens
Adopt upper and lower exhaust system
Export photoelectric sensor detection, when the product is not received, the time intensity is automatically converted to low power when the product is sensed
Conveying material: Teflon mesh belt
Conveying width: 650mm
Conveying speed: 0-5m/min
Entrance height: 100mm

Application industry: touch screen industry
Optional configuration, can be customized according to customer needs

DONGGUANG YIJIANG Photoelectricity Technology Co., Ltd. was established in 2016. The chief engineer and technical backbone of the company have 8-13 years of industry experience, and have made certain achievements in the semiconductor, aerospace, electronics and other industries. The company has served more than 12,800 companies since its establishment. +, The main equipment at this stage are: UV LED curing machine (system), UV ultraviolet curing machine, infrared (IR) tunnel oven, spraying equipment, industrial precision oven, vacuum oven, screen printing

machine, etc. Used in semiconductors, aerospace, new energy vehicle battery modules, new chemical composite materials, liquid crystals, mobile phone panel bonding, glue bonding, screen printing inks, precision electronics, optical communications, polymer chemical materials, medical industry, furniture wood, printing Inkjet, etc. In July 2019, the chief technical engineer of the company and the academician of the International

Optoelectronics Research Institute jointly developed a complete set of UV curing equipment suitable for semiconductor applications. Designed for reliability, designed for efficiency, and manufactured for durability, we are committed to developing more advanced UV curing systems, providing more cost-effective products, better technical guidance, and better after-sales service.
